IN MOST CASES...
Air Intake
STANDARD OVERFLOW PIPE
If your dual flush valve has its overflow pipe oriented towards the open side of the tank, then a standard air intake shroud will work in most situations.
* Use our standard air intake shroud fitment template to check.
BUT SOMETIMES...
Air Intake

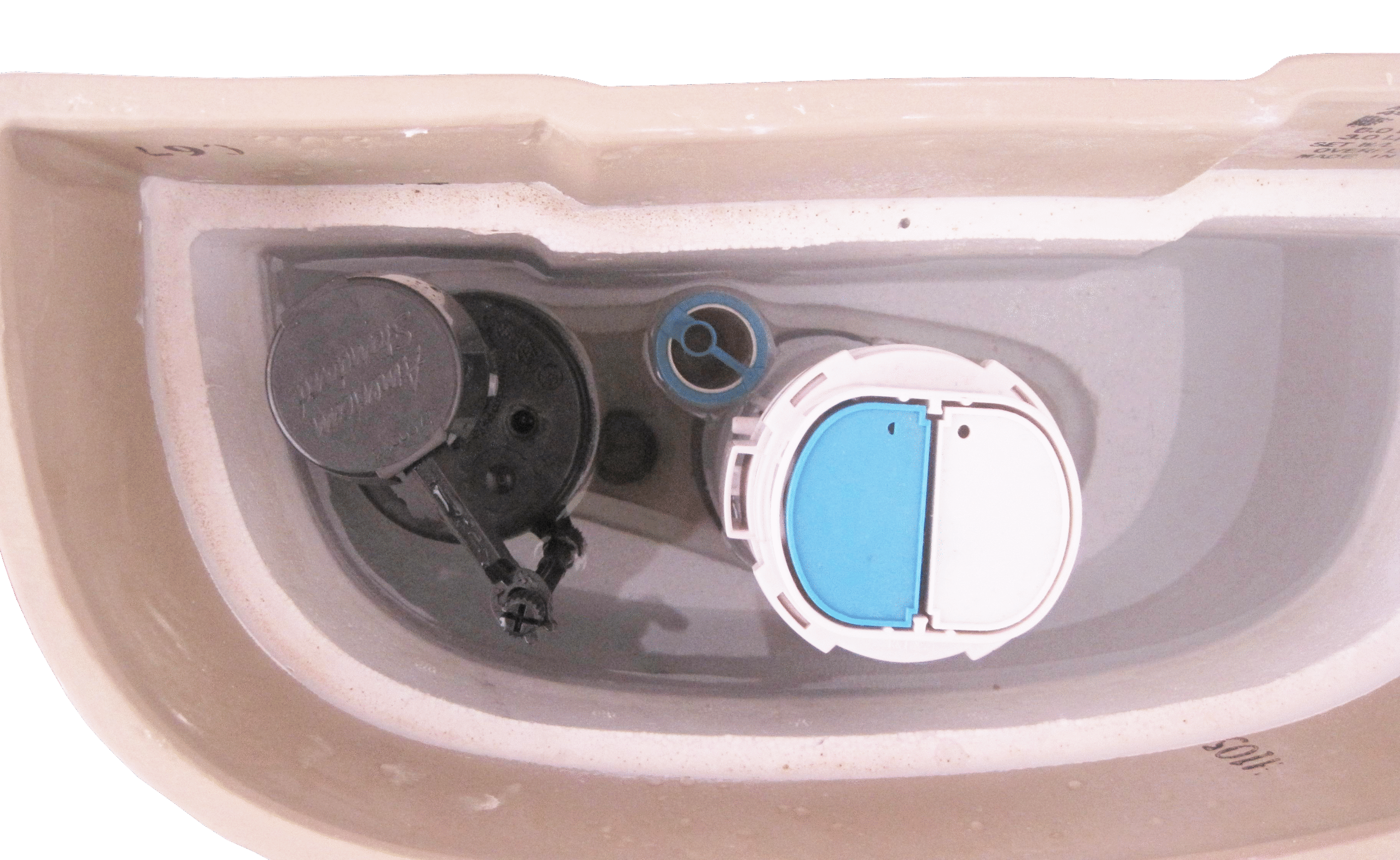

DUAL FLUSH
If your dual flush valve has its overflow pipe oriented towards the fill valve, or towards the rear or front of the tank and there isn’t enough room for a standard air intake shroud, then we have a DUAL FLUSH style air intake shroud for this situation.
Add to cart (below) the KIT OPTION: Air Intake Shroud – Dual Flush which upgrades the standard air intake shroud to a dual flush air intake shroud. Then select the appropriate standard kit in the following step.
* Use our dual flush air intake shroud fitment template to check.
** If your overflow pipe is too close to the refill valve to fit the dual flush air intake option, the tank may need to be disassembled to rotate the overflow pipe to a more open position. It may also be possible (and easier) to re-orient the fill valve and float to make more room.
*** Contact us if a mirrored version of the dual flush air intake shroud that curves in the opposite direction is needed.
KIT OPTION: Air Intake Shroud – Dual Flush
Kit content swap standard air intake shroud for dual flush style shroud
$8.00
