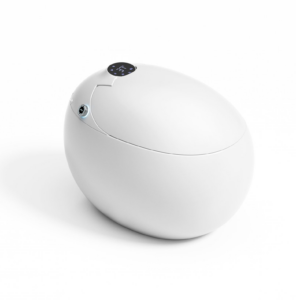

A smart toilet consists of a bidet seat attachment that is fitted to a conformally designed toilet bowl. Water hoses, power cables, and cisterns are enclosed within the bowl for a seamless appearance.
Smart toilets do not typically use a tank and gravity for flushing so will not have an overflow pipe system that can be used for odor extraction. However, in most cases a Sniffer system air intake tube can be added to a smart toilet bidet seat to draw air directly from the bowl and controlled using a motion sensor option kit. Required modifications to the smart toilet enclosure may void product warranty
** For add-on bidet seats that mount to a regular toilet, use a Potty Sniffer kit that matches the toilet tank overflow system design
Air Intake
SMART TOILET CONVERSION
Converts smart toilet to accept a Sniffer system air intake tubing connection. Smart toilet bidet seat needs to be disassembled and opened up for internal modifications to add the required tubing access holes. Contact a repair professional for installation, if required.

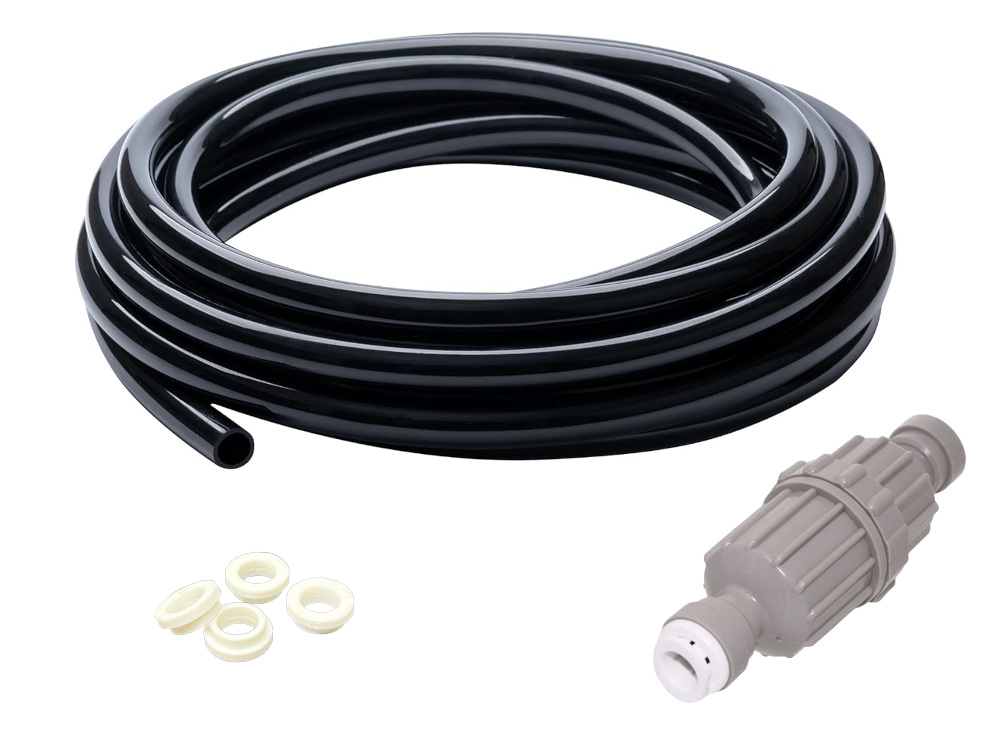

Conversion kit includes:
- 3/8″ O.D. black vinyl tubing – 3ft
- (4) 3/8″ tubing collars
- 3/8″ inline filter strainer
INSTALLATION STEPS
-
- Remove underside screws to separate upper and lower sections of bidet seat
-
Determine hole locations for air intake and bidet enclosure tubing access
-

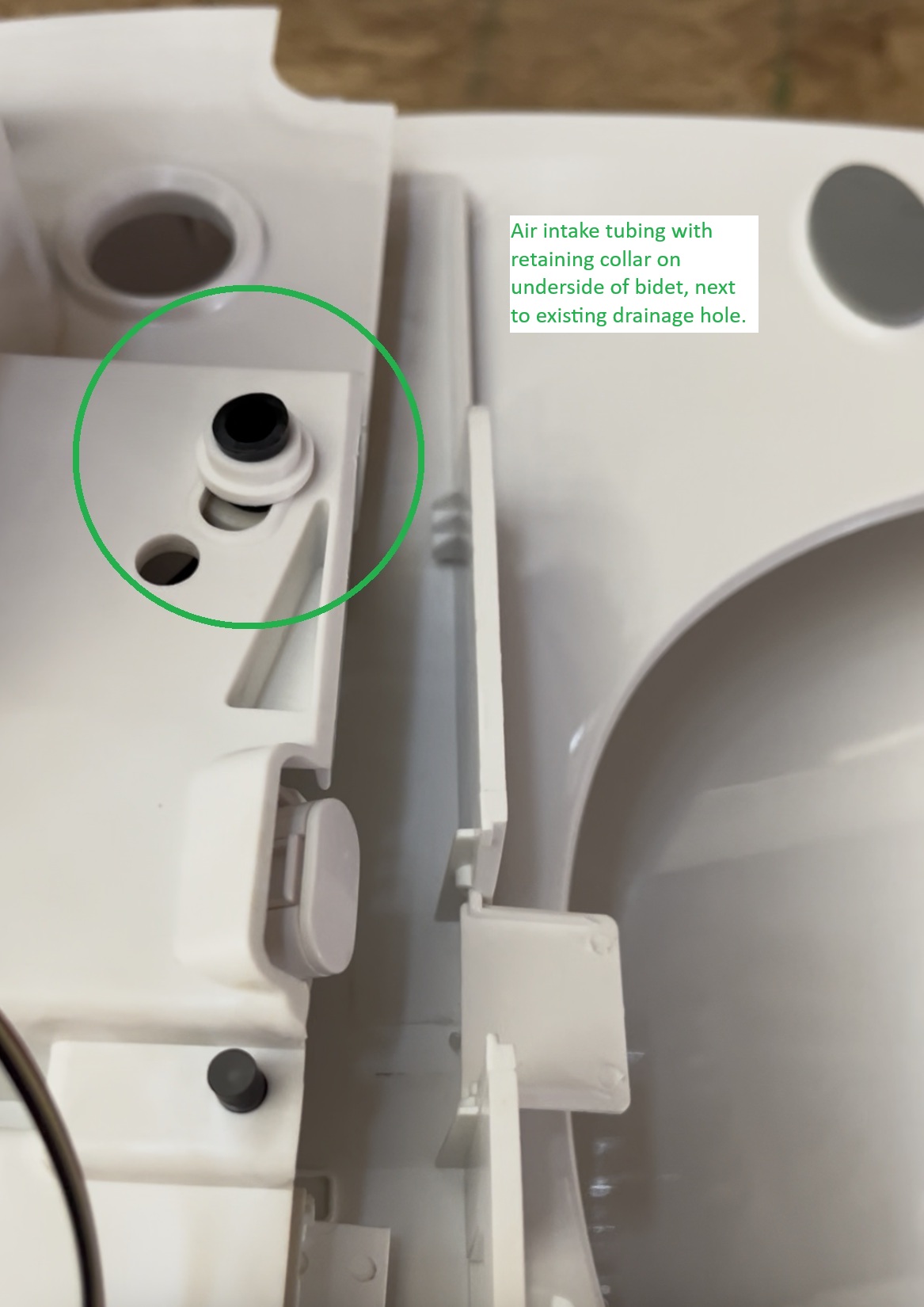

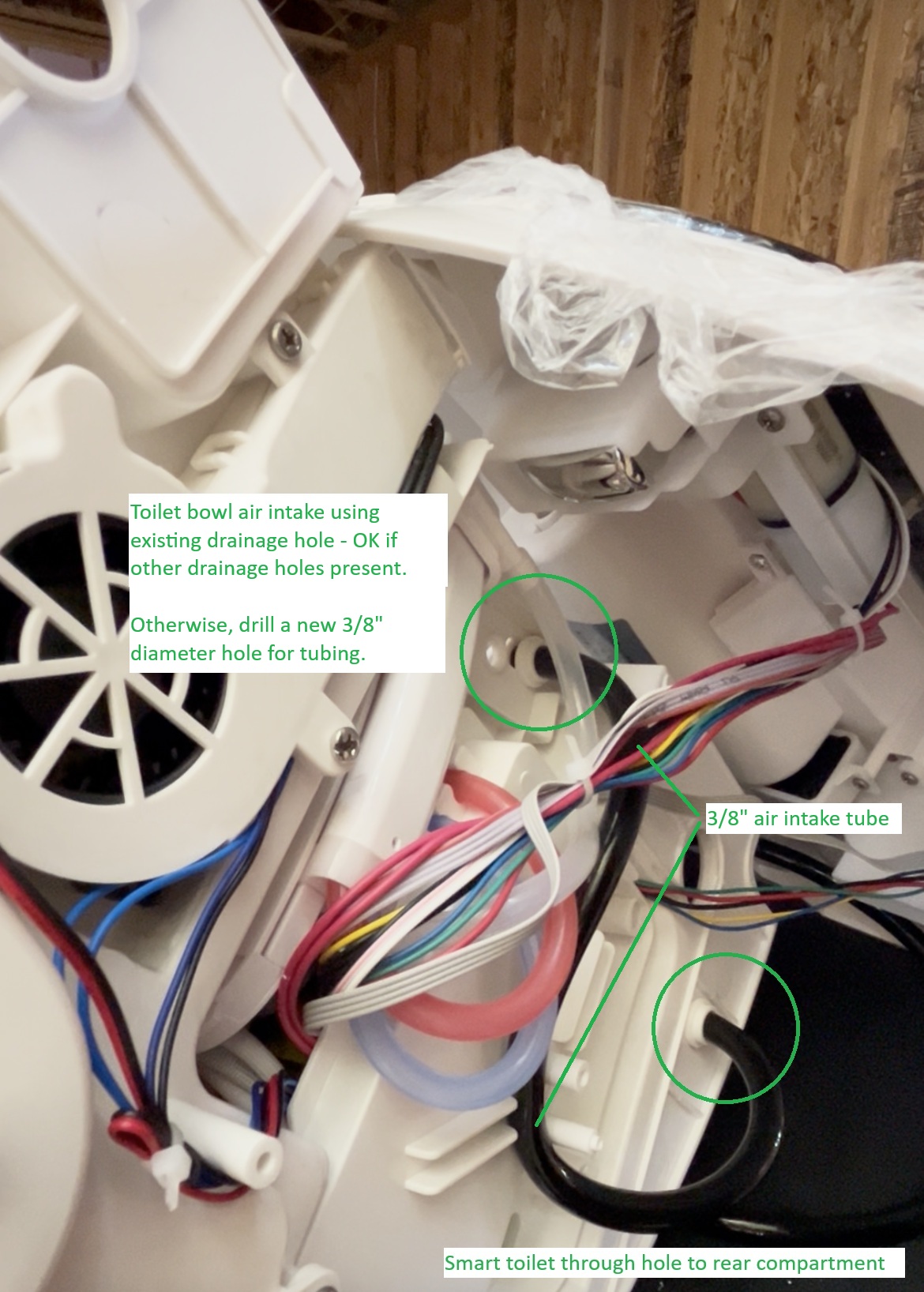

Position air intake hole next to existing water drainage holes leading to toilet bowl
Ensure tubing can be routed in a manner that does not interfere with any moving parts of the bidet
Drill 3/8″ diameter hole at each location, starting with small drill (1/8″) and stepping up gradually to 3/8″ -
Install tubing through holes. Use tubing collars to lock tubing in place at access holes
-
Re-assemble bidet seat. Use inline filter to make connection from bidet seat to Sniffer system intake tubing
Add to cart (below) the right size KIT OPTION: Smart Toilet Conversion to exchanges the standard air intake shroud for the conversion kit.
Add to cart (below) KIT OPTION: Motion Sensor Kit (PIR-8), no button to swap the regular button switch to a PIR-8 style motion sensor switch.
Then continue to select the appropriate standard overflow pipe kit in the following step.
KIT OPTION: Smart Toilet Conversion: $0.00
KIT OPTION: Motion Sensor Kit (PIR-9), no button: $19.00
