For toilet tank configurations where adding an air intake shroud or tubing holder clip is not possible, commercial toilets with flushometer valve, or RV toilets, a venting plate air intake may be an option.
Air Intake
VENTING PLATE

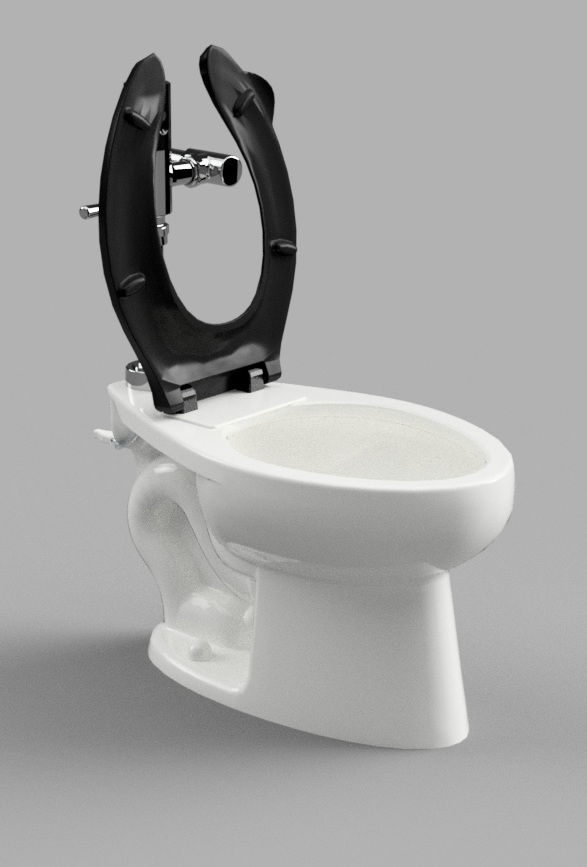

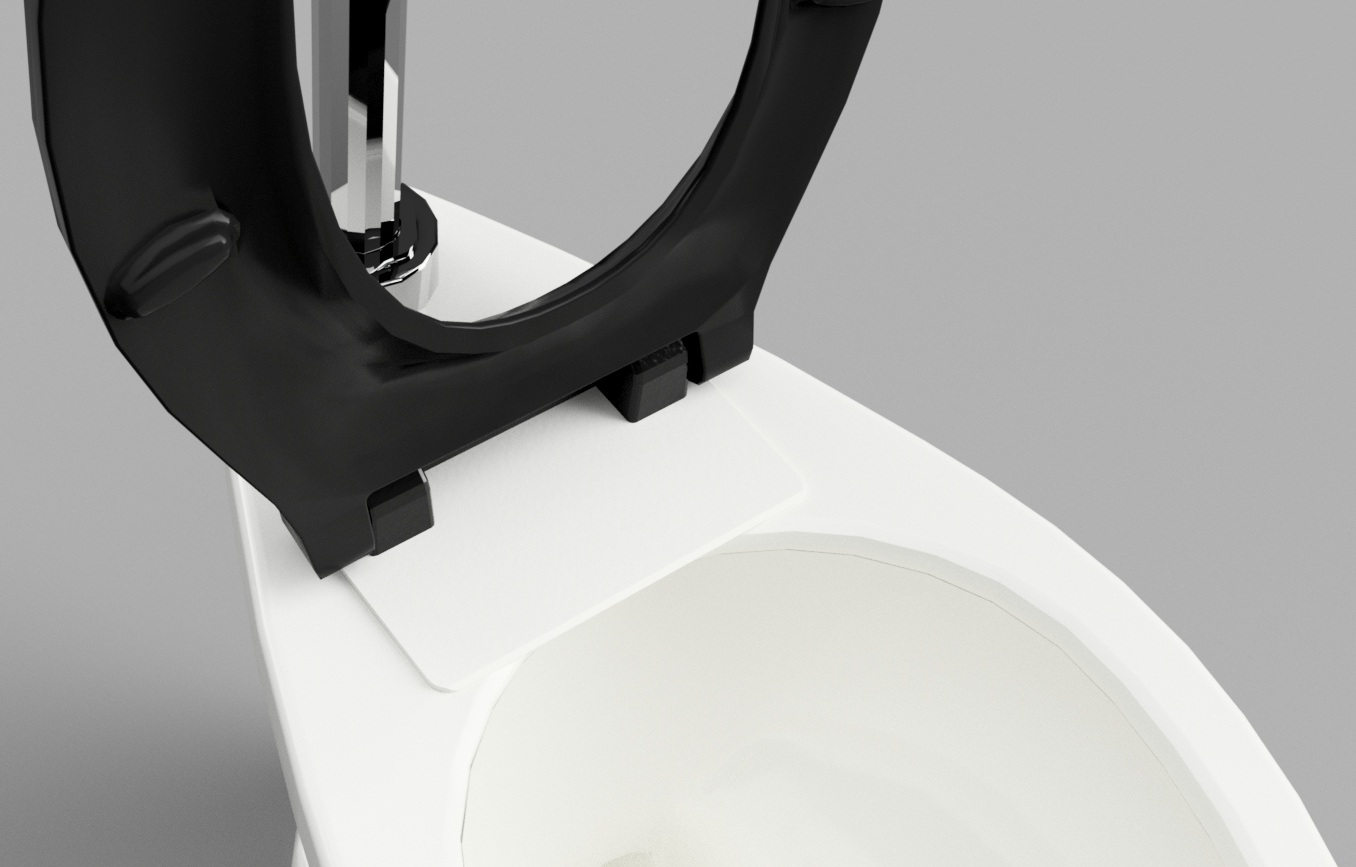

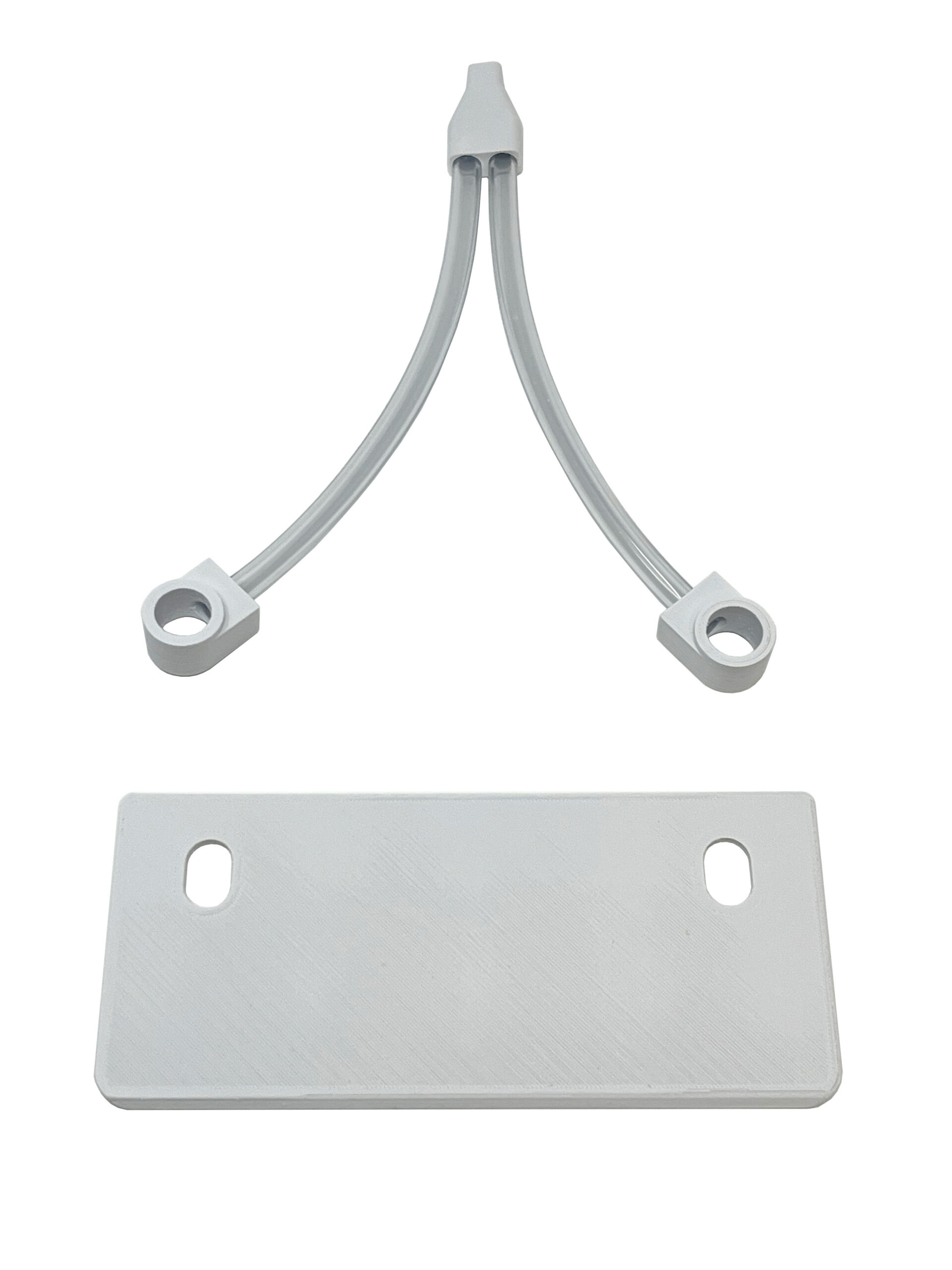

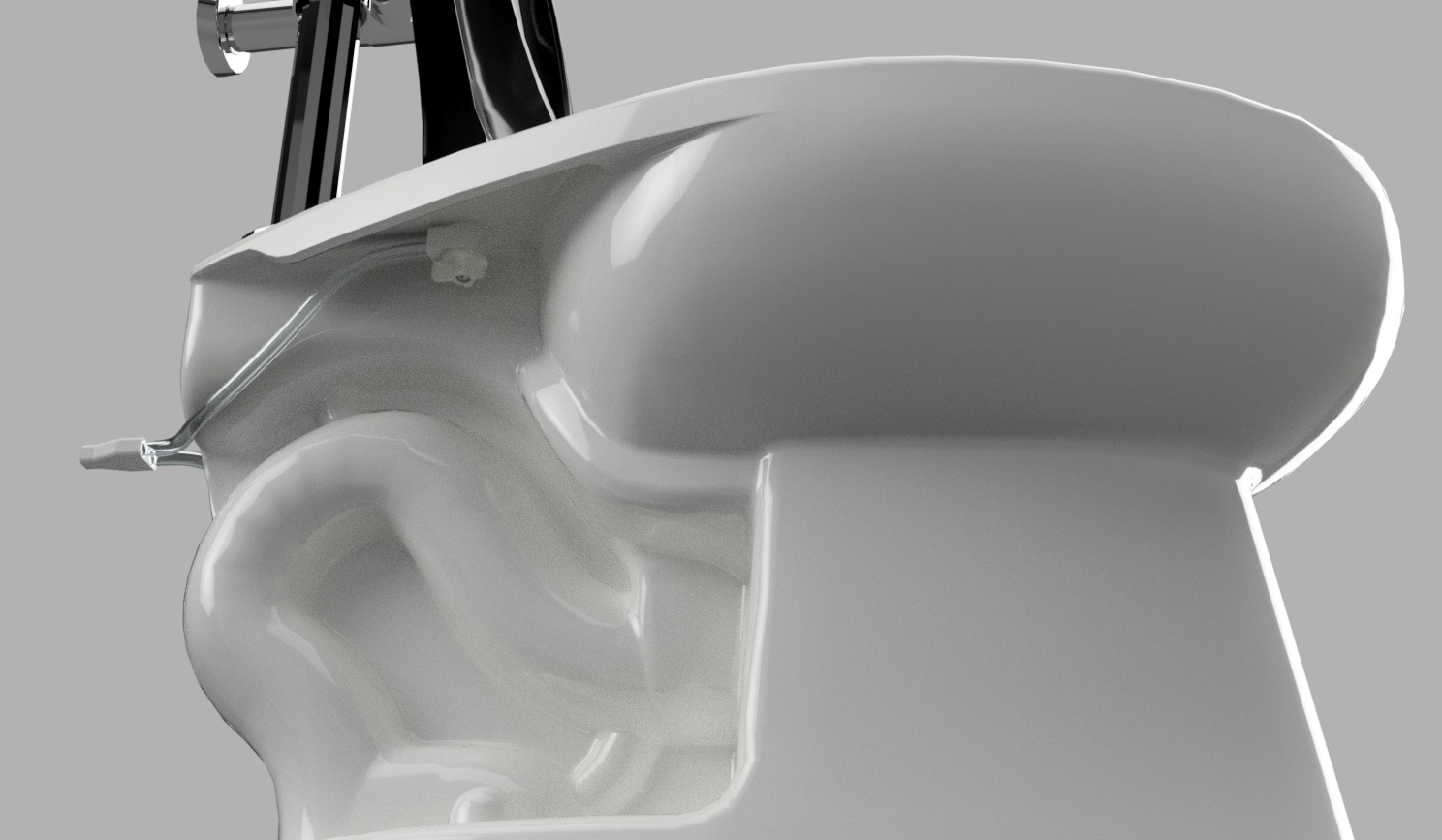

Each venting plate is installed between the toilet seat hinge brackets and the top surface of the toilet bowl. The Sniffer pump generates vacuum pressure to draw air from the toilet bowl using the narrow air channels on the underside of the venting plate and downward through the clearance hole spacing around each of the toilet seat mounting screws.

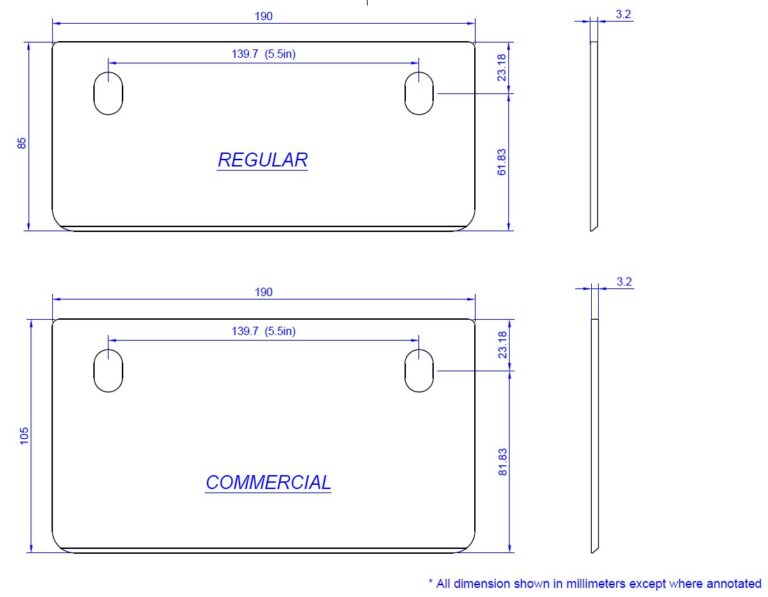

For compatibility, the toilet must use a conventional toilet seat design with 5.5″ hinge screw spacing, regular seat screws, and oversized mounting holes (typ. 1/2″ diameter).
* Compatible toilets will generally accept replacement toilet seats sold at local home improvement stores
Add to cart (below) the right size KIT OPTION: Venting Plate to exchange the standard air intake shroud for a venting plate air intake. Then select the appropriate standard kit in the following step.
Select REGULAR size for residential (and RV) toilets that have a compatible toilet seat hinge design.
KIT OPTION: Venting Plate – Regular: $5.00
Select COMMERCIAL for tankless, flushometer valve equipped toilets with compatible toilet hinge design.
KIT OPTION: Venting Plate – Commercial: $5.00
